Product Details
＋

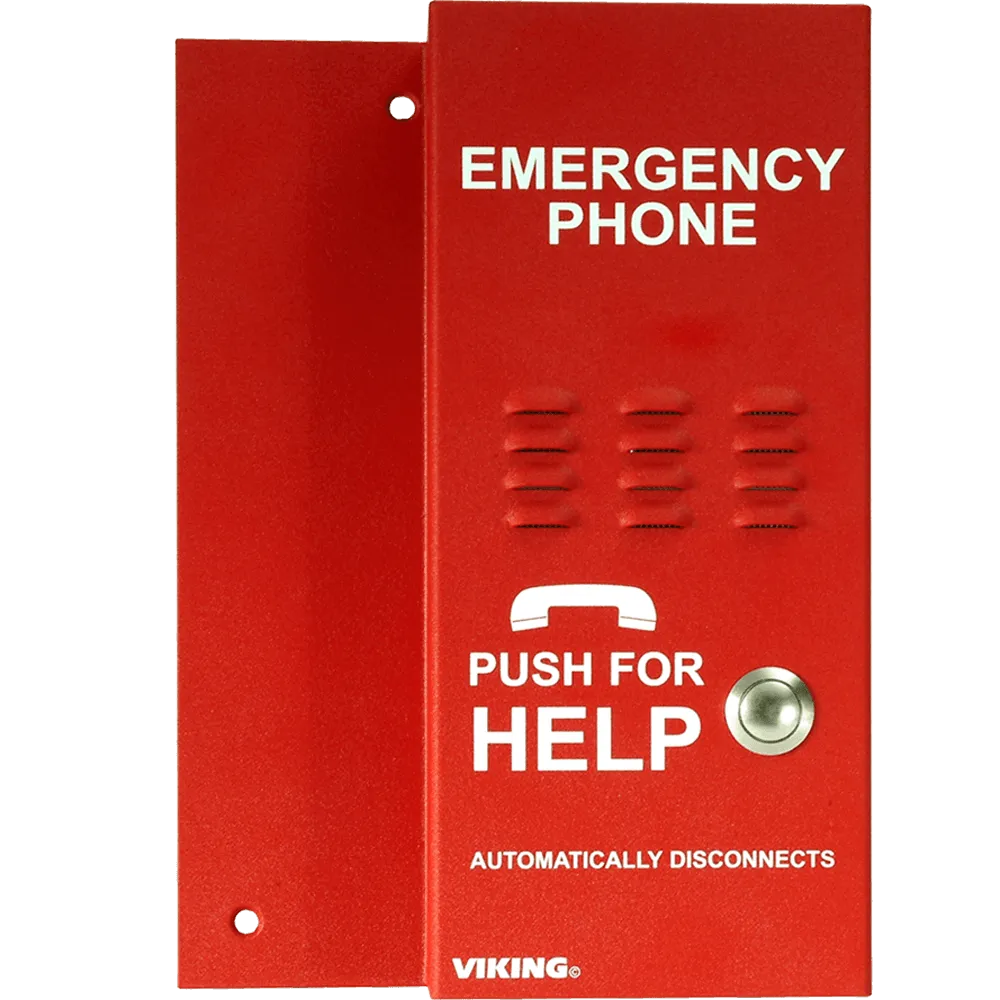

Viking K-1500-EHFA Features:
- Phone line powered
- No dial pads
- Designed to mount in a standard emergency phone enclosure (10” x 7” x 3”)
- Built for easy installation and simple operation
- Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal or timeout
- Alternate action “call” button to place or cancel a call
- Selectable auto-answer feature allows remote monitoring
- Two-way handsfree communication
- Vandal resistant metal push button
- Programmable maximum call length
- Programmable VOX (mic/speaker) switching speed
- Adjustable mic and speaker volume
- Use on an analog ringdown circuit that provides CPC, busy, Return to dial tone or silence when called phone hangs up
- K-1500-EHFA can also be used with Two-Way Phone Line Simulator
- Manufacturer Warranty 2 Year Limited Warranty
-
Viking K-1500-EHFA Applications
- Commercial, industrial or residential elevators
- Use in conjunction with a Viking K-1900-5 Dialer or a K-1900-30 Multi-Number Dialer on CO lines or analog PABX/KSU stations
- Use on a programmed ringdown circuit of an analog PABX/KSU station
Viking K-1500-EHFA Specifications:
- Power: Telephone line powered (18V DC/20mA minimum)
- Dimensions: 6.8” x 9.875” x 2.1” (174mm x 251mm x 63.5mm)
- Operating Temperature: 32°F to 90°F (0°C to 32°C)
- Humidity: 5% to 95% non-condensing humidity
- Speaker Volume: Approximately 70db maximum @ 1m
- Ring Voltage: 25V AC RMS minimum
- CPC Disconnect Time: 300ms minimum
- REN: 0.8A
- Connections: (1) 2-position terminal block
